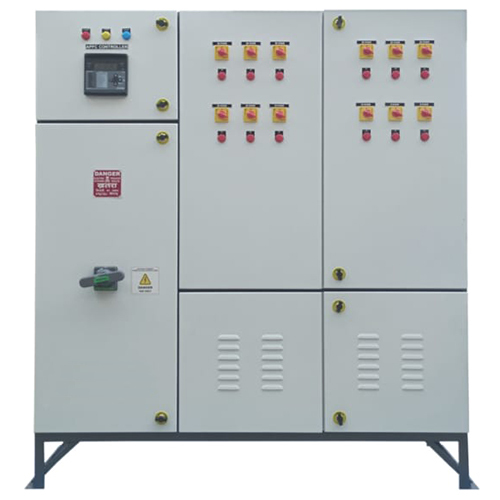

100HP APFC Control Panel

Get a Price/Quote

MOQ : 1 Unit

100HP APFC Control Panel Specification

Protection Class
Class 1

Thickness
2 mm

Rated Insulation Voltage
690 V

Connectivity Type
Terminal Strip

Rated Operation Voltage
415 V

Rated Current
140A

Cabinet Material
Steel Sheet

Features
Contactor-based, Stage-wise switching, Overload protection, Easy maintenance

Cooling System
Natural Air Cooled

Panel Type
Floor Mounted

Base Material
Mild Steel

Control System
Automatic Power Factor Correction

Operating Voltage
415 V

Components
MCB, MCCB, Contactor, Capacitors, APFC Relay

Current Rating
140A

Way
12 Way

Cover Material
Powder Coated Steel

Protection Level
IP54

Product Type
APFC Control Panel

Material
CRCA Steel Sheet

Surface Finish
Matte

Standard
IS 8623 / IEC 61439

Surface Color
Powder Coated Grey

Rated Voltage
415 V

Frequency (MHz)
50 Hz

Maximum Output Current
140A

Dimension (L*W*H)
1200x800x400 mm

Application
Industrial Power Factor Correction

Display Type
Digital Meter

Panel Mounting
Floor Standing

Number of Stages
12 Stages

kVAR Rating
200 kVAR

Indication Lamps
R, Y, B

Door Interlock
Provided

Connected Load
100HP

Ambient Temp Range
-10 to 50C

Capacitor Duty
Standard Duty

Busbar Material
Electrolytic Copper

Phase Type
Three Phase

100HP APFC Control Panel Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
15 Units Per Month

Delivery Time
2-5 Days

Main Export Market(s)
North America, Western Europe, Central America, Eastern Europe, Middle East, Asia, Australia, South America, Africa

Main Domestic Market
All India

About 100HP APFC Control Panel

Jump on this scarce opportunity to secure a 100HP APFC Control Panel, specially designed for pivotal performance in industrial environments. With a valuable kVAR rating of 200 and reliable 12-stage switching, this panel brings radiant efficiency in power factor correction. Crafted with electrolytic copper busbars, powder-coated steel, and robust IP54 protection, it assures safety and easy maintenance. Discount offers are limited-act quickly to enhance operational excellence with features like overload protection, automatic correction, and digital meter display. Ideal for industrial applications prioritizing reliability and productivity.

Competitive Advantages and Application Scope

The 100HP APFC Control Panel stands out due to its digital monitoring, overload protection, and automatic stage-wise switching. Its robust construction from CRCA steel and IP54 rating guarantees durability. Ideally suited for industrial facilities, this panel is pivotal for manufacturers and service providers looking to optimize power factor and reduce energy costs. With floor-mounted, three-phase design, it ensures reliable operation in factories, warehouses, and large commercial installations, maximizing cost efficiency and operational productivity.

Supply Ability, Sample Terms, and Export Coverage

We offer continuous supply of the 100HP APFC Control Panel, ensuring proposal amounts suit various project scales. Secure shipping methods guarantee safe product handover to both domestic and international buyers. Samples are available upon request, ideal for project evaluation. Our main export markets include Asia, Africa, and the Middle East. With reliable logistics and customer-centric service, you can confidently place your orders, knowing timely delivery and product integrity are prioritized every step.

FAQ's of 100HP APFC Control Panel:

Q: How does the 100HP APFC Control Panel improve power quality in industrial applications?

A: It automatically adjusts the power factor using stage-wise switching and capacitors, thus reducing reactive power losses and enhancing overall power efficiency within industrial facilities.

Q: What materials are used in the construction of the APFC panel to ensure durability?

A: The panel is assembled using high-grade CRCA steel sheet and electrolytic copper busbars, finished with a powder-coated surface for corrosion resistance, and rated IP54 for environmental protection.

Q: When should an industry consider installing an APFC control panel like this one?

A: Industries should opt for an APFC panel when facing penalties due to poor power factor, high electricity bills, or when seeking to meet regulatory standards for energy efficiency.

Q: Where is the 100HP APFC Control Panel typically installed?

A: It is designed for floor mounting in industrial environments such as manufacturing plants, warehouses, and large commercial setups requiring robust power factor correction.

Q: What is the process for acquiring a sample of the 100HP APFC Control Panel?

A: Interested buyers can contact us to request a sample, which will be delivered via secure shipping after confirming proposal amount and project suitability.

Q: How can users benefit from the automatic control system in this APFC panel?

A: Users benefit from optimized energy consumption, reduced manual intervention, minimized energy losses, and prolonged equipment life due to automatic power factor correction in real time.
